Patterns
Prepare and send a reply
Make sender identity, recipients and message content explicit before the local reply action.
On this page
User goal
Make sender identity, recipients and message content explicit before the local reply action.
Workflow
| Step | Expected behavior |
|---|---|
| 1 | Open an active conversation and review customer context. |
| 2 | Confirm From and To; adjust Cc/Bcc when needed. |
| 3 | Write the reply or explicitly request an AI draft while the body is empty. |
| 4 | Review the draft; a suggested reply is not automatically sent. |
| 5 | Check recipients and the final text, then use Send reply. |
| 6 | The source adds an outbound local message, moves the thread to Waiting and clears the composer body. |
Decision and composition rules
- AI cannot overwrite a nonempty body.
- At least one To recipient and a sender inbox are required.
- Draft saved is a local fingerprint timer.
- Added participant changes remount Composer and seed internal recipient arrays.
Edge cases and recovery

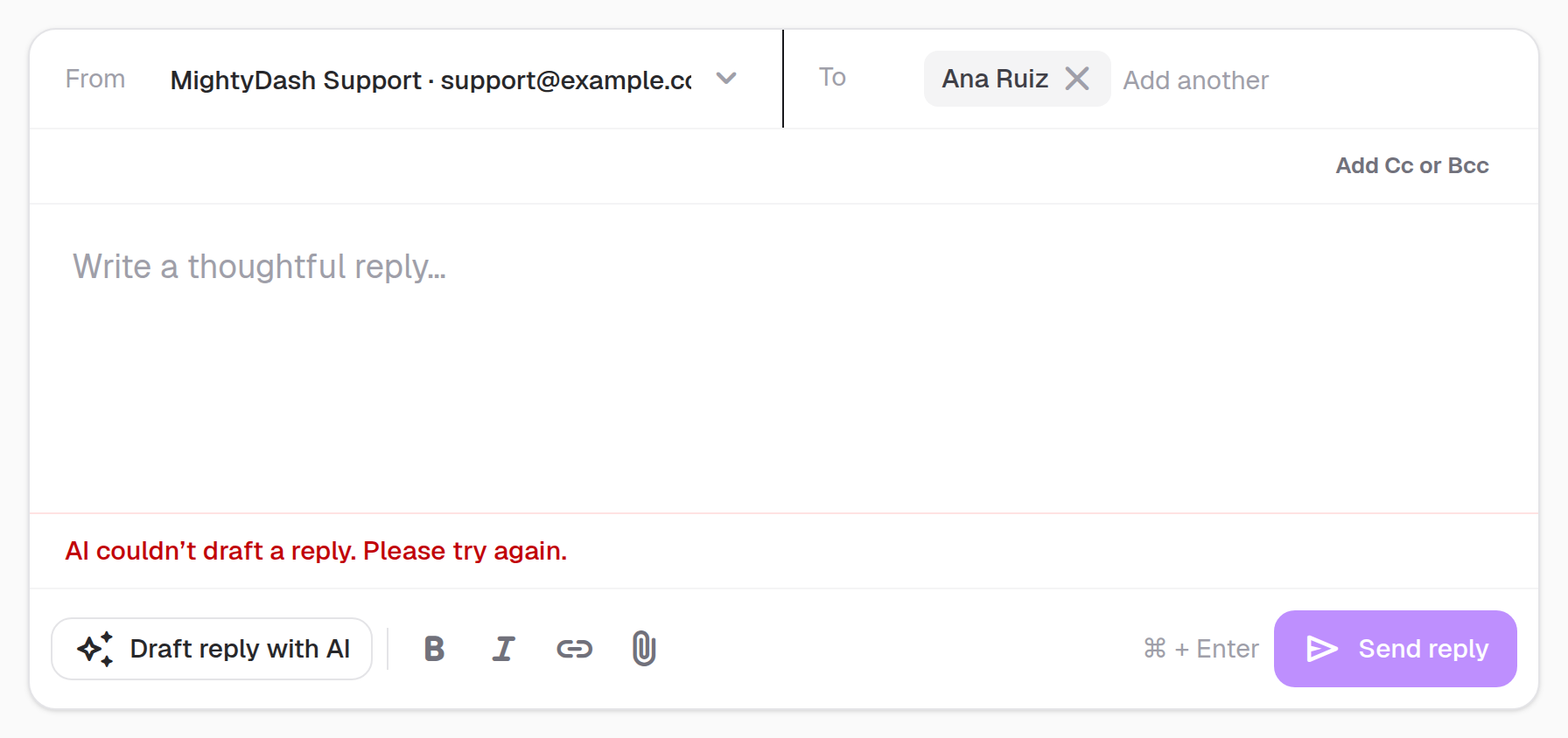

- AI failure shows a role=alert and can be retried.
- Formatting buttons and attachment affordance do not implement rich text/upload.
- The displayed keyboard shortcut is not wired.
- Real send must retain the draft until the authenticated outbox confirms acceptance and provide recoverable errors.
Persistence boundary
The demonstrated frontend uses local React state or static fixtures. Read the readiness topic before connecting these actions to authenticated persistence. A visible toast, badge or timer is not a server acknowledgement.
Source references
| File | Responsibility |
|---|---|
| components/inbox/composer.tsx | Envelope, draft and send gate |
| components/helpdesk-app.tsx | Local sendReply |
| lib/server/email/outbound.ts | Future trusted outbox boundary |

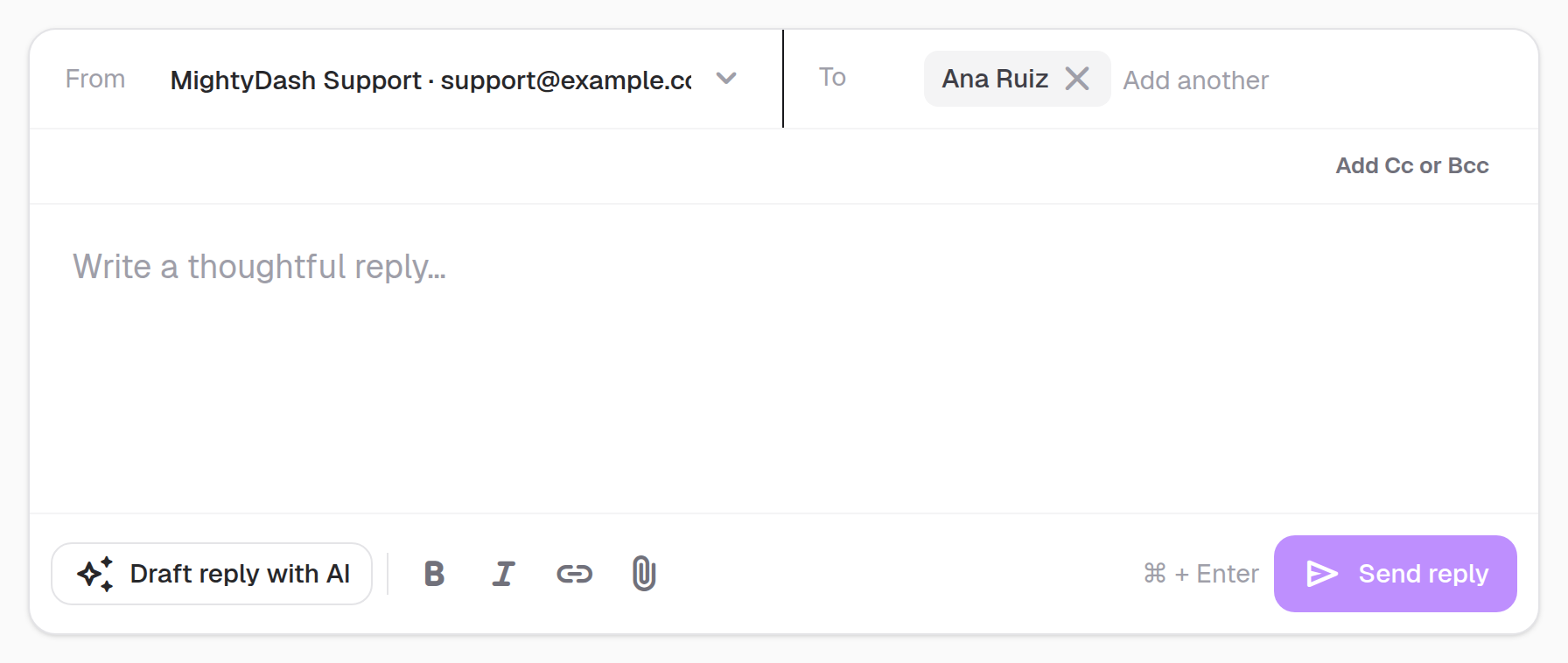

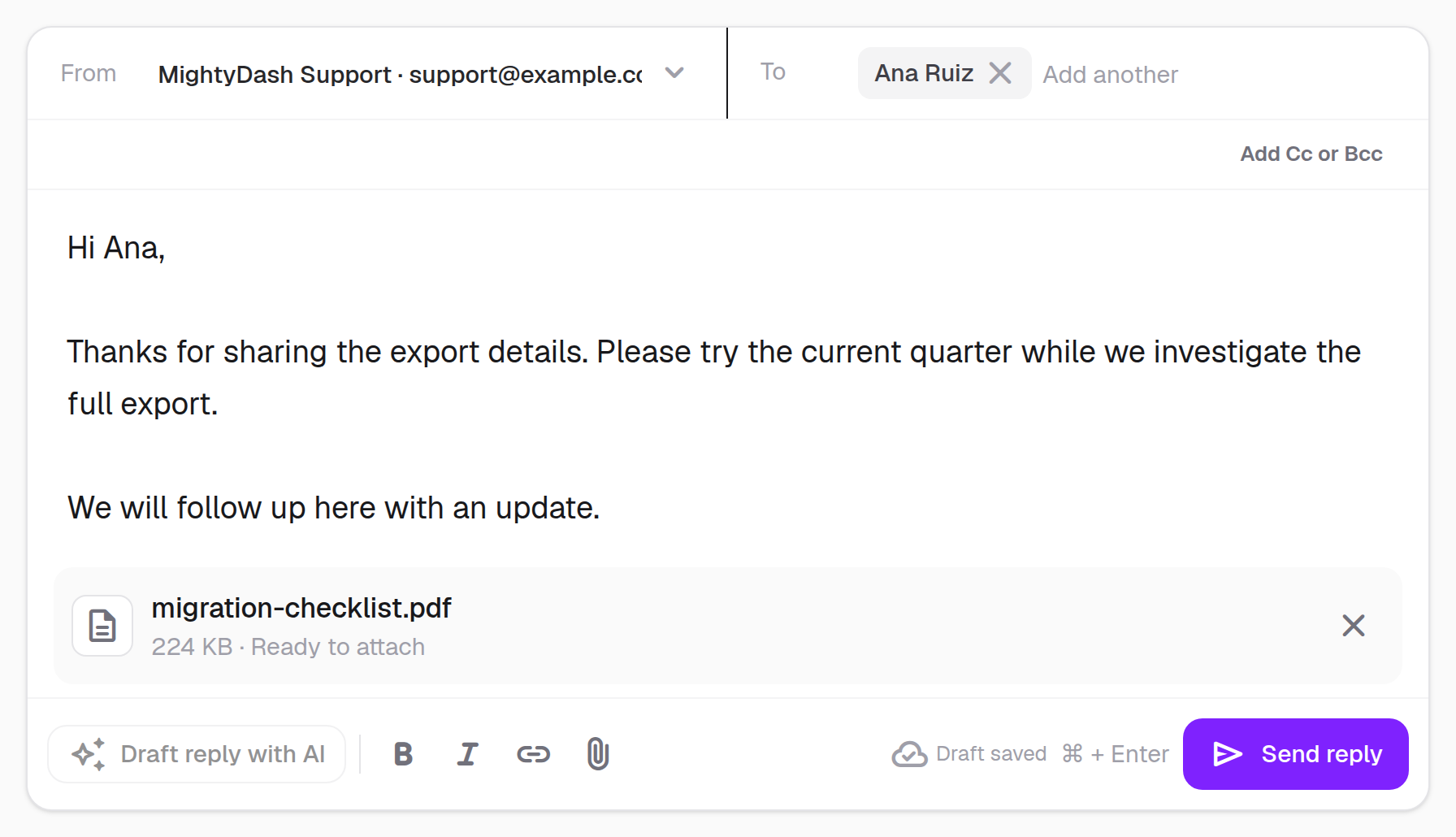

Examples from the app
Actual Sonarist components with fictional conversations, people, example.com addresses and simulated operational states. Captured at 2× resolution or higher. Select an image to inspect it full size.
Related topics
Source audit: 2026-10-08 · Revision 10f45d1377b5 · Documentation v1.0.0
